2mm 3mm 4mm Alloy Aluminum Sheet Marine Grade 6063 6061 Plate

Product Details:
Place of Origin: WUXI,CHINA
Brand Name: no brand
Certification: ISO
Model Number: 3003 3004 3005 3105 3104
Payment & Shipping Terms:
Minimum Order Quantity: 1TON
Price: USD1500-3000 PER TON
Packaging Details: Standard seaworthy export wooden pallets
Delivery Time: 10-15DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000TONS PER MONTH
  • Detail Information
  • Product Description

Detail Information

Alloy: 3003 3004 3005 3105 3104 Temper: O H32 H34 H36 H111 H321
Thickness: 0.1-15mm Width: 100-2800mm
Alloy Or Not: Is Alloy Model Number: 1050 1060 5052
Shape: Plate Surface: Mill Finish
High Light:

Marine Grade Alloy Aluminum Sheet

,

6063 Alloy Aluminum Sheet

,

2mm 6061 Alloy Aluminum Sheet

Product Description





Sale of 2mm 3mm 4mm Aluminum Sheet Marine Grade Alloy Aluminum Sheet 6063 6061 Aluminum Sheet Plate



6061 aluminum plate: The main alloying elements in 6061 alloy are magnesium and silicon, which have medium strength, good corrosion resistance, weldability and good oxidation effect. It is widely used in various industrial structural parts that require a certain strength and high antibacterial corrosion resistance; it can be used in the manufacture of trucks, building structures, ships, trams, furniture, mechanical parts, precision machining, and a wide range of industrial materials.

6063 aluminum alloy is widely used in the frame of building aluminum doors, windows and curtain walls. In order to ensure that doors and windows and curtain walls have high wind pressure resistance, assembly performance, corrosion resistance and decorative performance, the comprehensive performance requirements of aluminum alloy profiles are much higher than those of industrial Profile standard.

Product Description



Standard size of aluminum coil
width 1000mm/1250mm/1500mm/2500mm The length can be customized
Standard size of aluminum plate
1000mm*2000mm/1250mm*2500mm/1500mm*3000mm/2000mm*6000mm


Conventional standard thickness
0.2mm 0.3mm 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 4.0mm 5.0mm 6.0mm 8.0mm 10mm 12mm 15mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 80mm 85mm 90mm 95mm 100mm 105mm 110mm 115mm 120mm 125mm 130mm 135mm 140mm 145mm 150mm 155mm 160mm 165mm 170mm 175mm 180mm 185mm 190mm 195mm 200mm
Aluminum foil
Thickness 0.0045mm--0.2mm Width 10mm-500mm
The length supports customization
Aluminum strip
Thickness 0.2mm-4mm, Width 10mm-1000mm,
The length supports customization
Hardness H0 H12 H14 H18 H22 H24 H26 H32 H111 H114 T4 T6 Other hardness can be customized
It can be used for color drawing, embossing, cutting, pattern, strip and other processing
Material table
Product use


1000 series
1050
Food, chemical and extrusion coils, various hoses, fireworks powder
1060
Chemical equipment is its typical use

1100
Chemical products, food industry installations and storage containers, weldments, heat exchangers, printed boards, nameplates and reflective appliances



2000 series
2024
Aircraft structures, rivets, missile components, truck hubs, propeller components and other structural components
2A12
Aircraft skin, spacer frame, wing rib, wing beam, rivet, etc., and structural parts of buildings and transportation vehicles
2A14
Free forging and die forging with complex shape




3000 series

3003
Kitchen utensils, food and chemical products, storage equipment, storage tanks for transporting liquid products, and various pressure vessels and pipelines
3004
Chemical product production and storage devices, plate processing parts, building processing parts, building tools and various lamp parts
3105
Room partition, baffle, movable room board, eaves gutter and downpipe, sheet forming parts, bottle caps, corks, etc



4000 series
4032
Piston, cylinder head
4043
Building distribution frame
4343
The products are widely used in automobiles, water tanks, radiators, etc.




5000 series
5052
Aircraft fuel tank, oil pipe, traffic vehicle and ship sheet metal parts, instruments, street lamp supports and rivets, hardware products, etc

5083
Plate Weldments of ships, automobiles and aircraft; Pressure vessel, refrigeration device, TV Tower, drilling equipment, transportation equipment
5754
Storage tanks, pressure vessels, ship materials



6000 series
6005
Ladder, TV antenna, etc
6061
Pipes, rods, profiles and plates for trucks, towers, ships, trams, furniture, mechanical parts, precision machining, etc
6063
Building profiles, irrigation pipes and extruded materials for vehicles, stands, furniture, fences, etc




7000 series
7075
It is used for manufacturing aircraft structure and other high stress structural parts and molds with high strength and strong corrosion resistance
7175
High strength structure for forging aircraft.
7475
Aluminum clad and non aluminum clad plates for fuselage, wing frame, stringer, etc. Other parts with high strength and high fracture toughness

8000 series
8011
The aluminum plate with bottle cap as the main function is also used in radiators, most of which are used in aluminum foil products



Detailed Images

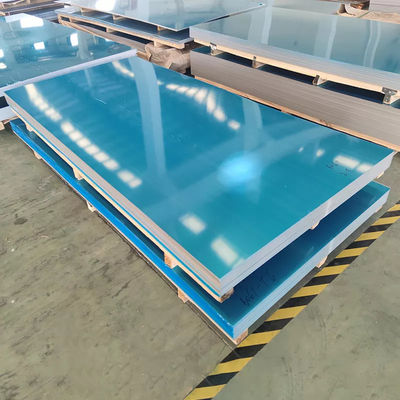

2mm 3mm 4mm Alloy Aluminum Sheet Marine Grade 6063 6061 Plate 0

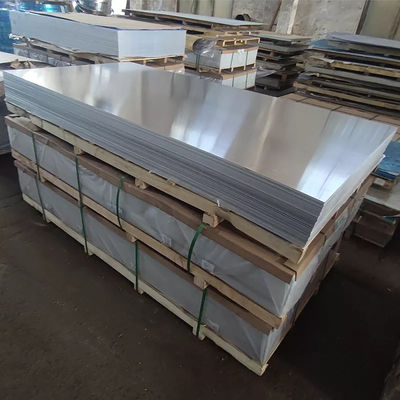

2mm 3mm 4mm Alloy Aluminum Sheet Marine Grade 6063 6061 Plate 1

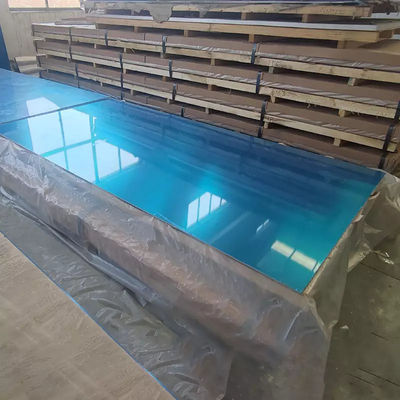

2mm 3mm 4mm Alloy Aluminum Sheet Marine Grade 6063 6061 Plate 2

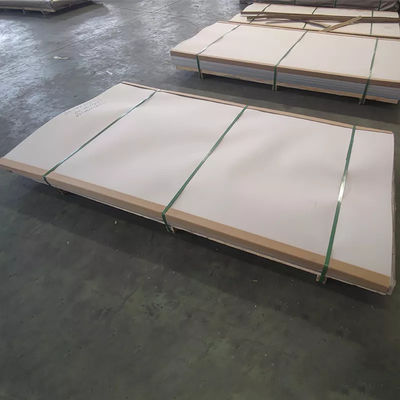

2mm 3mm 4mm Alloy Aluminum Sheet Marine Grade 6063 6061 Plate 3

2mm 3mm 4mm Alloy Aluminum Sheet Marine Grade 6063 6061 Plate 4





Packing & Delivery



2mm 3mm 4mm Alloy Aluminum Sheet Marine Grade 6063 6061 Plate 5
